How to Install a Wireless Access Point in 4 Simple Steps

Strong Wi-Fi coverage throughout your home is a must, whether you work from home, are an avid gamer or have a big family with lots of streaming needs. Unfortunately, a single router won’t always provide enough coverage, especially if you live in a larger home. The solution? Installing a wireless access point (WAP). It extends your Wi-Fi network so you and your family can enjoy seamless connectivity throughout the home. If you’re ready to boost your Wi-Fi, here are the steps you need to get your WAP setup to access a better home connection.

Overview of Wireless Access Point Installation

1. What Is a Wireless Access Point?
2. What to Do Before Installing a WAP
3. How to Set Up a Wireless Access Point in 4 Steps
4. Tips for Optimizing Your Wireless Access Point
5. How to Troubleshoot WAP Setup Issue

What Is a Wireless Access Point?

A wireless access point creates a wireless local area, or WLAN, in a large space. WAPs connect to a wired router or hub through an Ethernet cable and project a Wi-Fi signal across a designated area. A WAP allows more devices to connect to the network without overwhelming the main router’s capacity.

The primary benefit of a WAP is extending Wi-Fi coverage. Instead of relying on a single router to cover a home, the access points expand the network’s reach to minimize dead zones. WAPs are especially useful in multistory homes or homes with unusual layouts and walls that block Wi-Fi signals.

What to Do Before Installing a WAP

Before installing a wireless access point, there are a few essential preparations to ensure smooth setup and optimal performance.

1. Verify Your Current Network Setup: Make sure your existing modem and router are working correctly. The router should provide a stable internet connection, as the WAP will depend on it.
2. Choose a Suitable WAP: Wireless access points come in various models with different features. Choose one that’s compatible with your router and capable of handling the number of devices and coverage area you need. If you have a Wi-Fi 6 router, get a Wi-Fi 6-compatible WAP for faster speeds and better device handling.
3. Plan Placement Carefully: Where you place your WAP will affect its performance. Place the WAP in a central area to cover a specific zone where you have connectivity issues, ideally away from walls, metal objects and electronic devices that could interfere with the signal. For multistory homes, placing WAPs on a different floor from your main router creates a seamless network.
4. Gather Installation Materials: You’ll need an Ethernet cable to connect the WAP to your router, along with any required mounting hardware if you plan to place the WAP on a wall or ceiling. Having these materials ready before starting will make the installation process smoother.

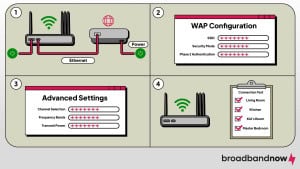

How to Set Up a Wireless Access Point in 4 Steps

Setting up a WAP may sound technical, but it can be installed quickly even if you aren’t too tech-savvy. Follow the straightforward installation steps to extend your home’s Wi-Fi coverage.

1. Connect to the Network

Plug one end of an Ethernet cable into the Ethernet port on your router and the other end into the WAP. If the WAP will be mounted in a distant room, you may need a longer Ethernet cable to supply power and data over the same cable.

Once the WAP is connected to the router, plug it into a power source, and turn it on. Many WAPs have indicator lights to show their status. Follow the instructions on your chosen device to see what indicates a successful connection.

2. Configure the Setup

Your WAP will come with a setup manual that guides you to a web interface or app for configuration. You may need to connect to the WAP’s IP address through a web browser and then log in using the default credentials provided.

From there, you can name the WAP, set up a password and specify the network name. You can create a unique name for your WAP, but for seamless roaming, it’s best to choose the same name as your main router.

3. Adjust Advanced Settings

Once your WAP is set up, adjust advanced settings to fine-tune your WAP. Look for options such as:

• Channel Selection: To minimize interference, choose a channel that doesn’t overlap with other nearby devices. Many WAPs have an “auto” setting that automatically selects the best channel.
• Frequency Bands: If your WAP supports both 2.4 GHz and 5 GHz bands, you can adjust settings for each. The 5 GHz band is faster but has a shorter range, making it ideal for smaller areas. The 2.4 GHz band covers more distance and is better for general coverage.
• Transmit Power: Some WAPs allow you to control the transmit power, which affects the signal’s range. Higher power levels can improve coverage, but it’s best to experiment to find the balance that works best for your space.

4. Test the Connection

Once setup and configuration are complete, it’s time to test the WAP. Move around the area where you expect to use the Wi-Fi and check the signal strength on your devices. If you encounter weak spots, adjust the WAP’s placement or settings as needed.

Use third-party speed test tools to measure the connection quality in various areas throughout the home. A successful setup should provide smooth, fast connections in areas where coverage was previously weak.

Tips for Optimizing Your Wireless Access Point

To get the most out of your WAP, consider these optimization tips:

• Regular Firmware Updates: Manufacturers release updates that improve performance, security and compatibility. Check for updates regularly and apply them to keep your WAP working properly.
• Set a Strong Password: Network security is essential. Ensure your WAP uses a strong, unique password and WPA3 security, if available, to prevent unauthorized access.
• Minimize Interference: Keep your WAP away from devices like microwaves or mirrors, as they can interfere with Wi-Fi signals.
• Reboot Periodically: Like any networking device, WAPs benefit from an occasional reboot. This can refresh the device’s memory and improve connection stability.

How to Troubleshoot WAP Setup Issues

It’s not uncommon to encounter some issues when setting up a WAP. Luckily, most challenges can be fixed rather easily. Lack of internet access is a common issue that may indicate a connection problem. Check the Ethernet cable to ensure it’s securely in place to both the router and WAP.

If your signal is weak, you may need to adjust the WAP’s position to avoid obstructions. For slow speed issues, change the Wi-Fi channel or frequency band to reduce interference. Trouble accessing the WAP setting could be an error with the IP address. Confirm that you’re using the correct string of numbers as you attempt to log in, as it’s not uncommon to mix up the numbers.

Frequently Asked Questions About Wireless Access Points

What is the difference between a router and a wireless access point?

Routers manage multiple devices on the network, while a WAP is a simple extension of the Wi-Fi network. A router connects your devices to the internet and directs network traffic. A wireless access point extends the router’s Wi-Fi coverage, creating additional wireless access in a specific area.

Does a wireless access point have its own IP address?

Yes, most WAPs have their own IP addresses within the network, which allows you to access and configure them through a web interface. The IP, assigned by the router, can be found in the WAP’s settings.

Is a wireless access point the same as a Wi-Fi extender?

A wireless access point isn’t the same as a Wi-Fi extender, but both can improve Wi-Fi coverage. The main difference lies in how each device connects to the network and extends coverage. A WAP connects directly to the router using an Ethernet cable, integrating with the router’s wired network. A Wi-Fi extender or repeater connects to the network wirelessly, receiving the existing Wi-Fi signal from the router and rebroadcasting it to reach areas with weak or no signal.
